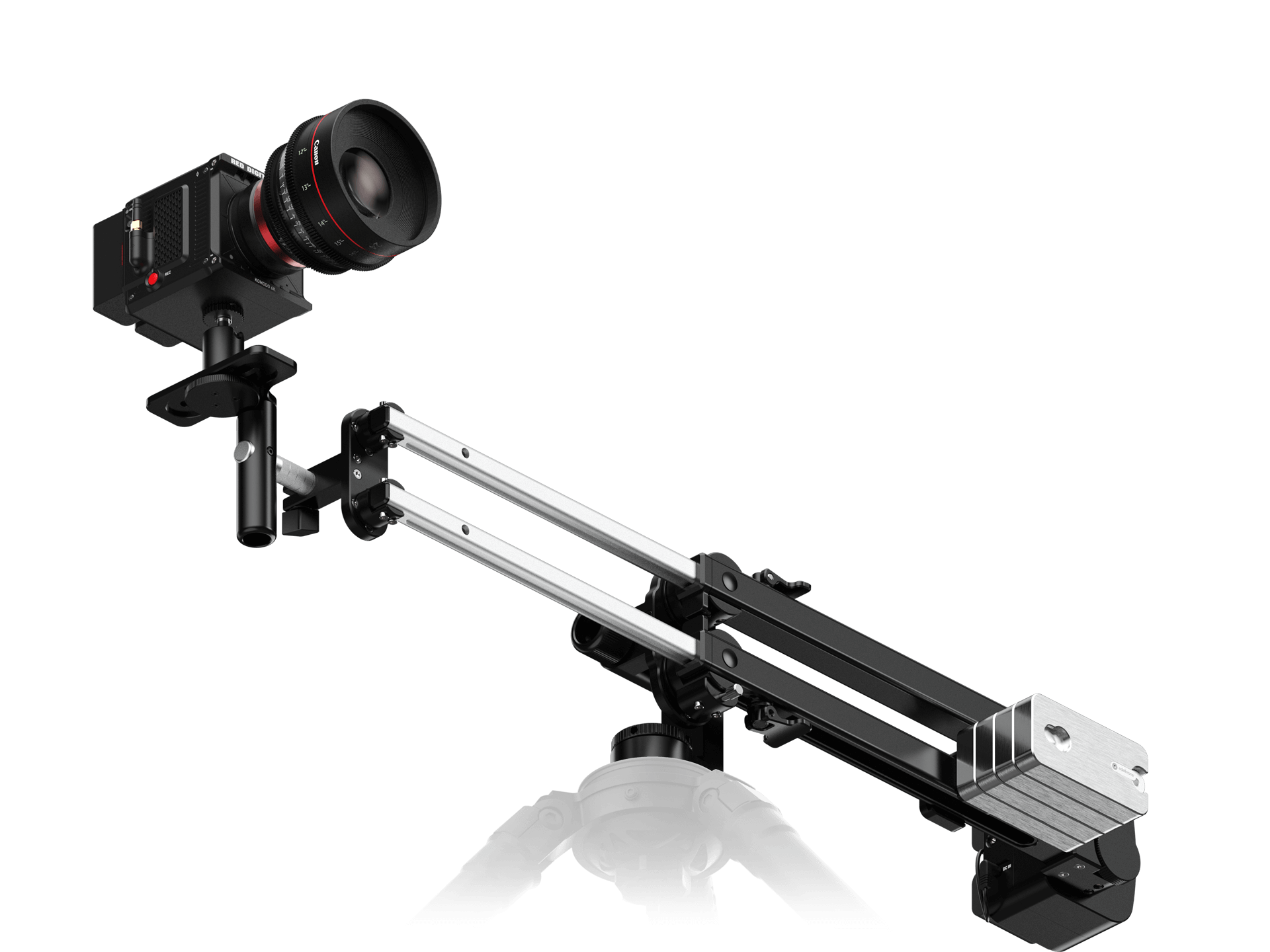

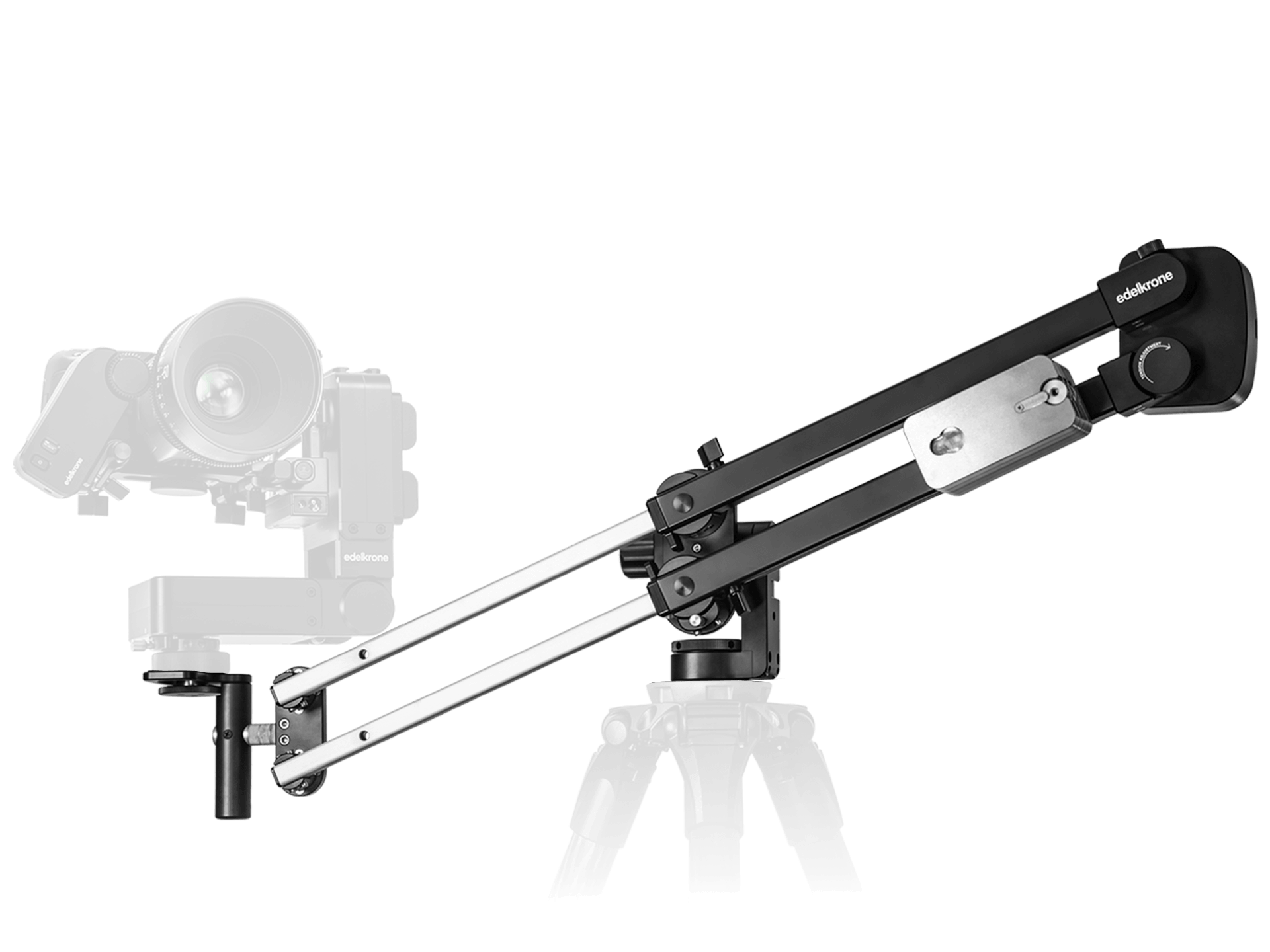

JibONE
OR
JibONE v2
The most portable jib in the world with unrivaled motorized motions & upgraded features. JibONE delivers the versatility & speed you need with complete edelkrone motion control ecosystem integration.
Watch Video
Tech specs
V1
V2
JibONE v1, Main counterweight, x3 additional Counterweight, Shutter Extension Cable (not shutter cable), NP-F Battery Bracket, AC/DC Adapter,
JibONE v2, Main counterweight, x3 additional Counterweight, Shutter Extension Cable (not shutter cable), NP-F Battery Bracket, AC/DC Adapter,
No (turns off only when the battery is detached)
Yes
12 lb / 5.5 kg (with 2.2 lb / 1 kg counterweight)
12 lb / 5.5 kg (with 2.2 lb / 1 kg counterweight)
11 lb / 5 kg or less (Camera + motorized head / tripod head)
11 lb / 5 kg or less (Camera + motorized head / tripod head)
3.1 lb / 1.4 kg (Camera + motorized head / tripod head)
3.1 lb / 1.4 kg (Camera + motorized head / tripod head)
No. Communicates only wirelessly.
Yes. Can operate both wired and wirelessly
2.2 lb / 1 kg single counterweight
2.2 lb / 1 kg single counterweight
1.64ft / 50 cm
1.64ft / 50 cm
Safety lock, adjustable Jib length & angle
Safety lock, adjustable Jib length & angle
50 cm in 140 sec
50 cm in 140 sec
50 cm in 8 sec
50 cm in 8 sec
Step motor with ultra high-res encoder.
Step motor with ultra high-res encoder.
NP-F type battery bracket included. Bracket hosts 2 x NP-F batteries simultaneously. (Batteries are not included)
NP-F type battery bracket included. Bracket hosts 2 x NP-F batteries simultaneously. (Batteries are not included)
With 28.8 Wh energy (1 Canon LP-E6 battery is 14.4 Wh)
Operates 2 hours (continuously at full speed)
Shoots 12000 photographs (in Time-Lapse mode)
With 28.8 Wh energy (1 Canon LP-E6 battery is 14.4 Wh)
Operates 2 hours (continuously at full speed)
Shoots 12000 photographs (in Time-Lapse mode)
2.5 mm (Shutter trigger cable is sold separately).
2.5 mm (Shutter trigger cable is sold separately)
HeadONE, HeadPLUS, Pan Module.
HeadONE, HeadPLUS, Pan Module.
2.4 GHz direct link for inter-device communication and BLE for pairing / mobile phone connection
2.4 GHz direct link for inter-device communication and BLE for pairing / mobile phone connection
iOS 11.0 or later & Android 5.0 or later
iOS 11.0 or later & Android 5.0 or later
CNC machined aluminum and stainless steel components.
CNC machined aluminum and stainless steel components.
Fast & Flexible Motions
A smart & portable jib solution with 1.64 ft (50 cm) camera travel that mounts on a tripod to give you smooth, silent & sweeping motorized motions. Optimized for cameras up to 11 lb (5 kg), JibONE can be controlled remotely or operated manually allowing a fast & easy setup.
JibONE is a single axis jib but you can adjust the movement angle of the axis as you like. Set up JibONE vertically for incredible incline shots, horizontally for stunning slider-like movements, or diagonally to mix both axes for even more amazing angles.
Unparalleled Features for the Ultimate Jib Experience
Hand-Control for Unprecedented Efficiency

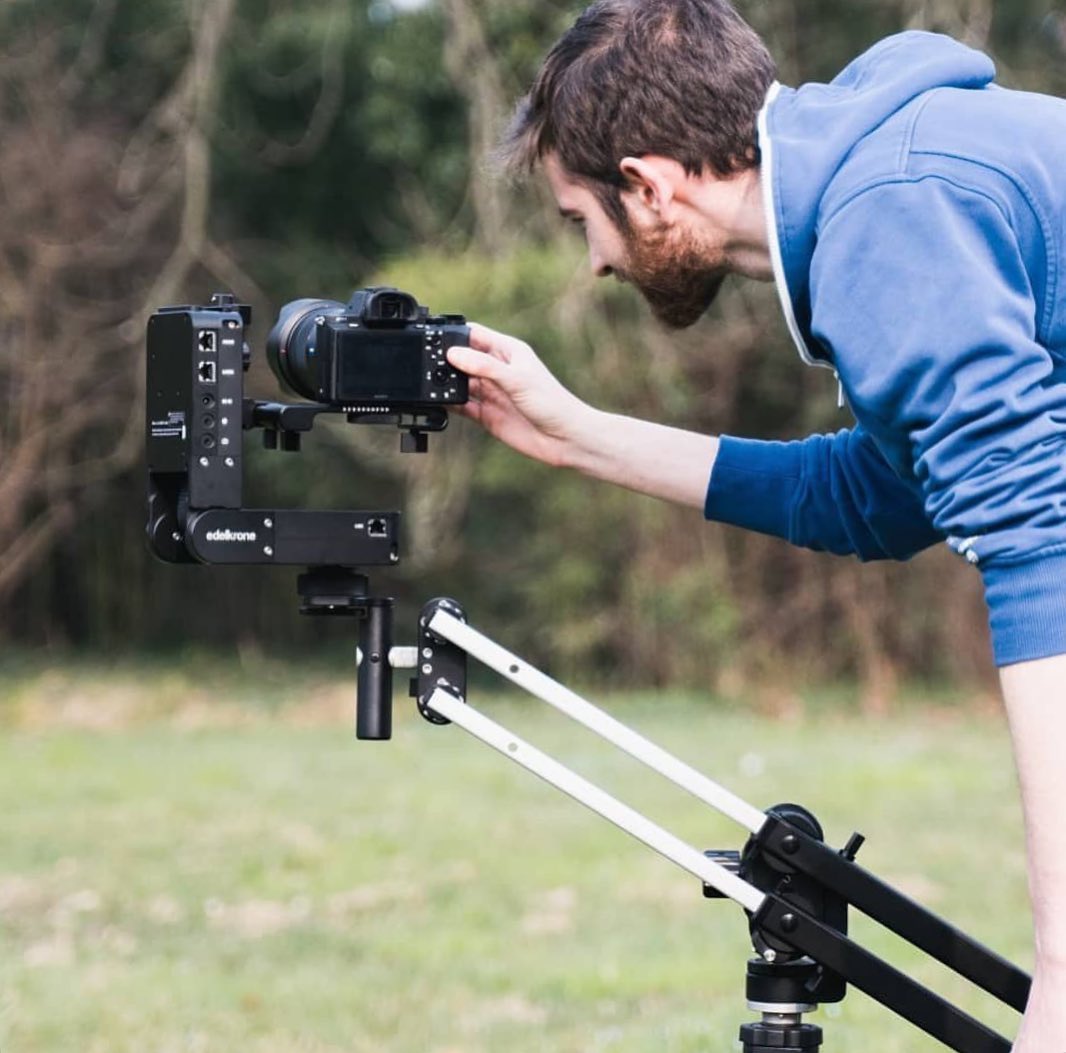

Add exceptional speed to your workflow by positioning JibONE by hand and saving it as a keypose in the edelkrone App. You can now remotely move JibONE between set positions with a single tap in the app.
Fast Setup, Fantastic Results
It only takes a few minutes to set up JibONE, no tools or assembly required. Just attach it to your tripod, extend the jib, get your camera in place, balance the counterweights, and you're ready to film.You can easily move JibONE around set using the locking mechanism, so you can pick it up and place it in a new position securely.
You Asked, We Listened
JibONE comes with a physical power on/off button for better power management, an information screen with instant feedback, and a better wireless connection with longer range.We engineered JibONE to improve the overall user experience and included a more durable head plate for increased strength. JibONE comes with the option for a fully wired connection with the addition of Wired Signal Hub.
Efficiency in Every Detail
Upright or Upside Down Mounting Options

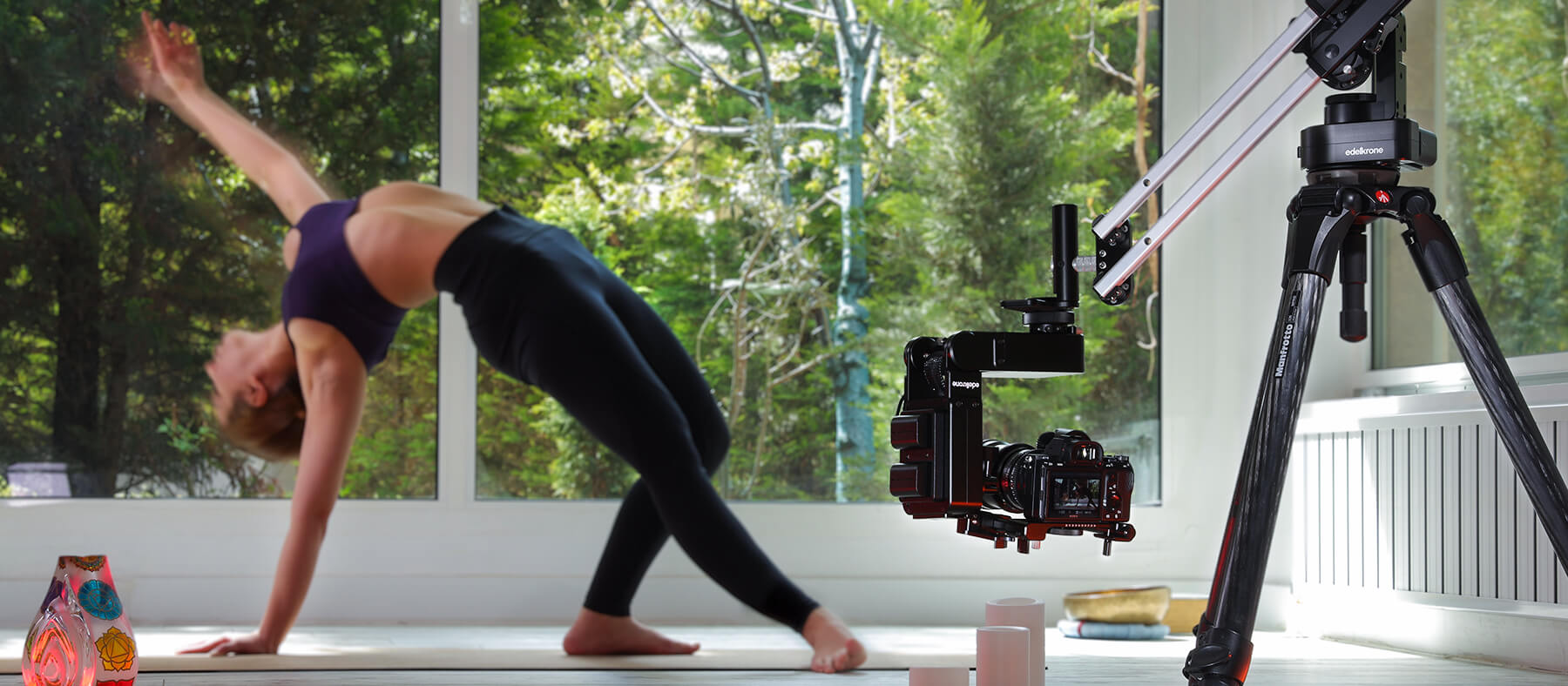

JibONE has endless mounting options that add to its versatility. You can attach any tripod head, edelkrone HeadPLUS, or HeadONE upright or upside down based on your needs. You can mount upside down thanks to the 360° rotatable camera plate even if the setup is diagonal.
Easily Find the Perfect Balance
One of the most important factors when filming with a jib is without a doubt: balance. JibONE comes with four specially designed 2.2 lb (1kg) counterweights that easily slide back and forth to balance your setup.
Compact Size for Comfortable Travel
One of the standout features of JibONE is its amazing portability. When retracted, JibONE is a compact 24 in (61 cm) long, which can fit comfortably in your edelkrone Backpack.
Perfect on the inside
Super Accurate Backlash-free Gear Design
All edelkrone motorized products use the same backlash-free gear design technology for perfectly repeatable, smooth motion for even the most demanding shots. Even the most portable edelkrone devices have heavy-duty gears assuring lifetime good performance.

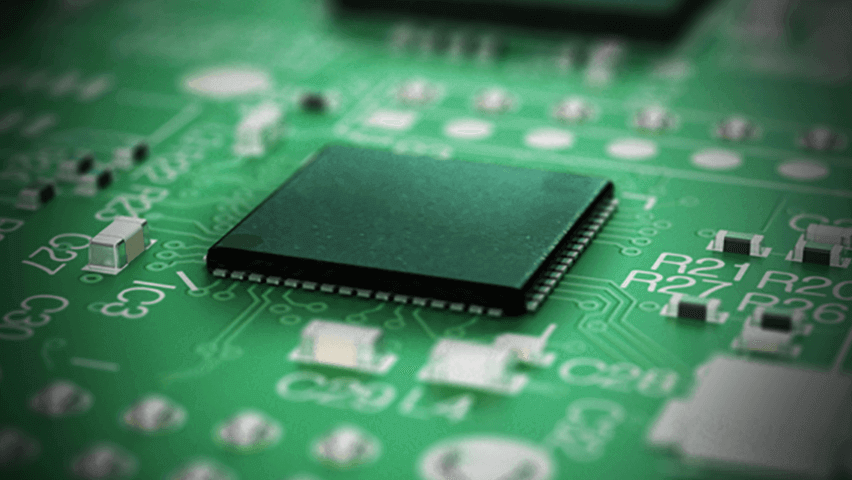

Ultra Quiet Step Motor Driving Technology
All edelkrone motorized devices have a unique quiet step motor driving technology that combines ultra precise step motor positioning ability with ultra quiet operation. Step motors are perfect for precise motion control but until now their downside has been the noise they make. With edelkrone motorized devices, you will get the world’s most precise positioning with the quietest performance.
▼
Controlling Options
edelkrone App
The edelkrone App stands out as a comprehensive and intuitive control platform, designed to seamlessly and wirelessly control all edelkrone devices from both Apple and Android devices. Learn More.
More Options?
Beyond the edelkrone App's wireless capabilities, did you know that there are diverse ways to control and integrate your edelkrone devices? Whether through custom software, wired connections, or third-party integrations, there's so much more to explore. Learn More.
Tripod X
Tripod X, the world's first fully motorized tripod, will offer you a level of comfort and speed that you have never experienced with any other tripod.
Tripod X can effortlessly raise and lower any JibONE setup.
