Tripod X
World's first Fully Motorized, Self Moving, Self Leveling Tripod
Tripod X
A New Era in Videography
Fully Motorized. Self Moving. Self Leveling.
Tripod X, the world's first fully motorized tripod, will offer you a level of comfort and speed that you have never experienced with any other tripod. It can effortlessly raise and lower even the heaviest setup loads including all of edelkrone motion control systems.
With Tripod X, you can wave goodbye to the various discomforts traditionally associated with tripod adjustments – from the nagging knee bends to the tedious toe-tip stretches. Experience a new era of ease and speed in camera setup, where your well-being is as prioritized as your shot.
▼

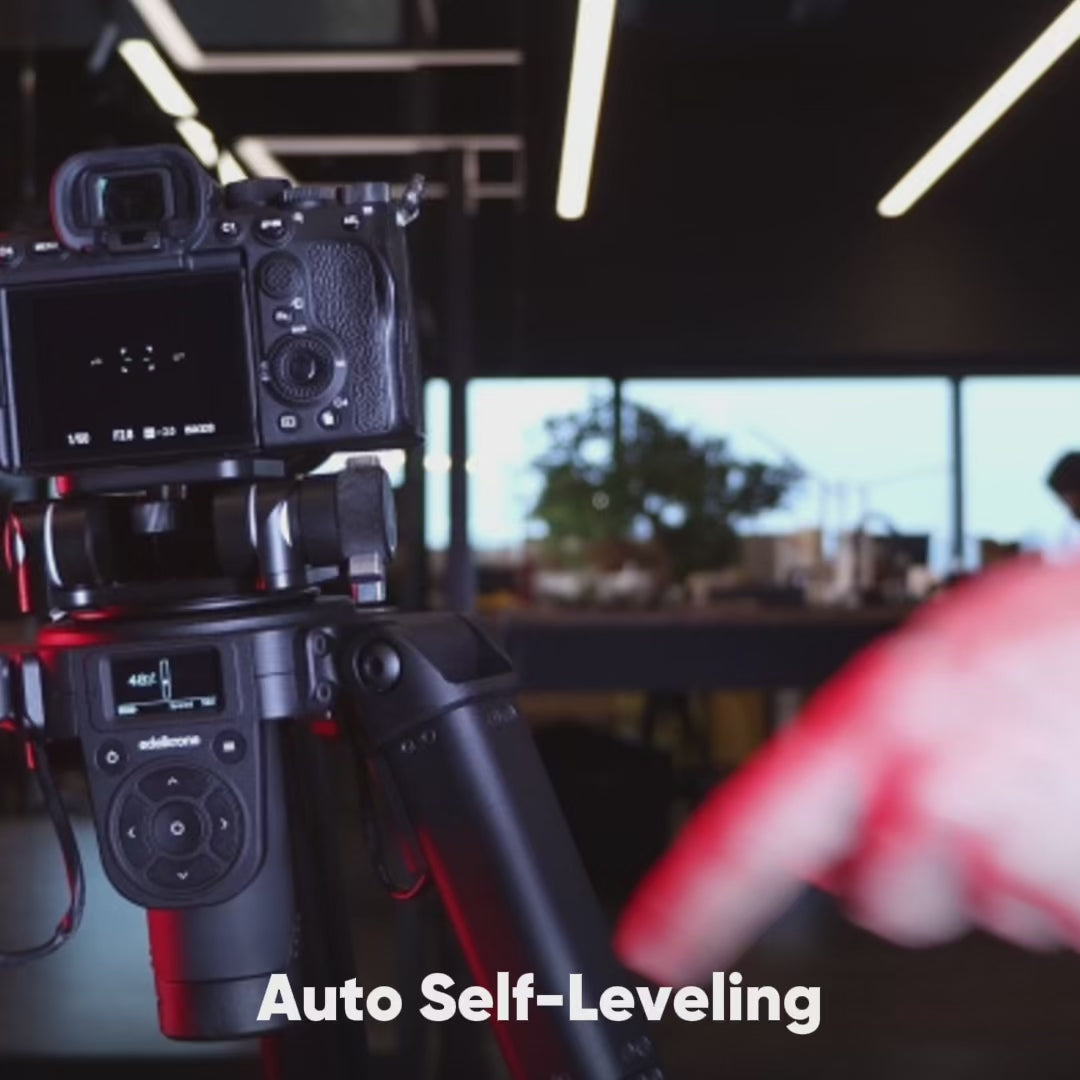

Auto Self-Leveling
You can deploy Tripod X on uneven ground. With one touch, it levels itself, providing an exceptional ease of use.
The smart sensors embedded within Tripod X constantly monitor and adapt, ensuring that your setup remains perfectly level without requiring your intervention. Tripod X can do this all by itself, without the need of pairing with the edelkrone App.
▼
Capture Captivating Motion Time-lapses

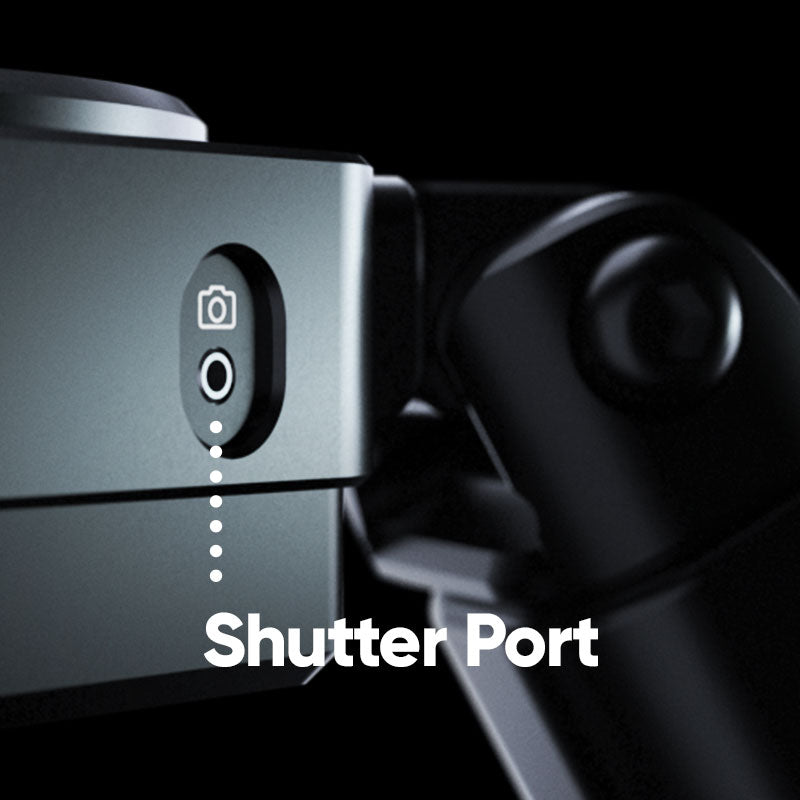

You can effortlessly create smooth transitions between 2 different poses and get dynamic motion time-lapses. Connect your camera to the trigger port on Tripod X using a shutter trigger cable (sold separately), and you're ready to capture. You can achieve very unique motion paths that can not be achieved with any other motion control device.
▼

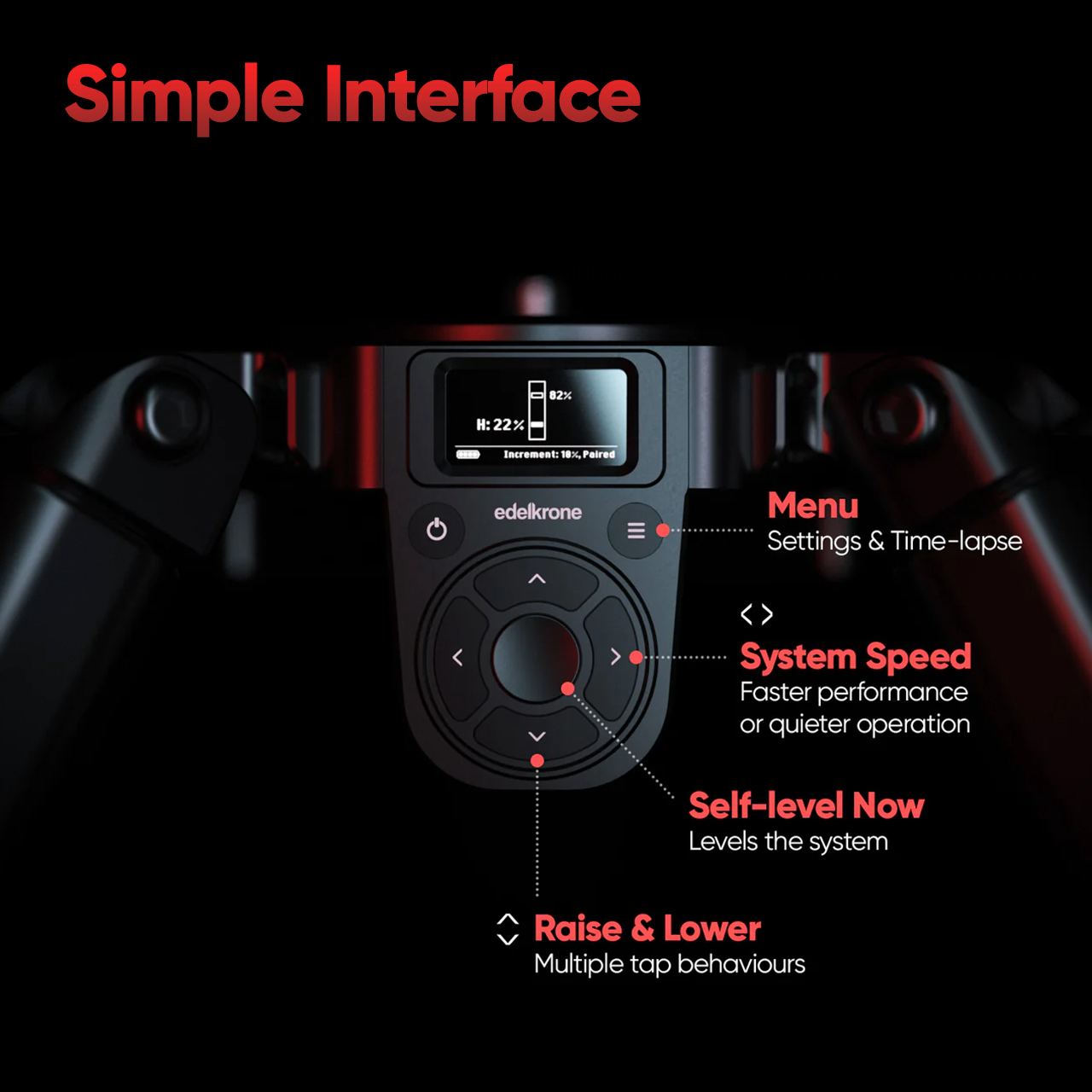

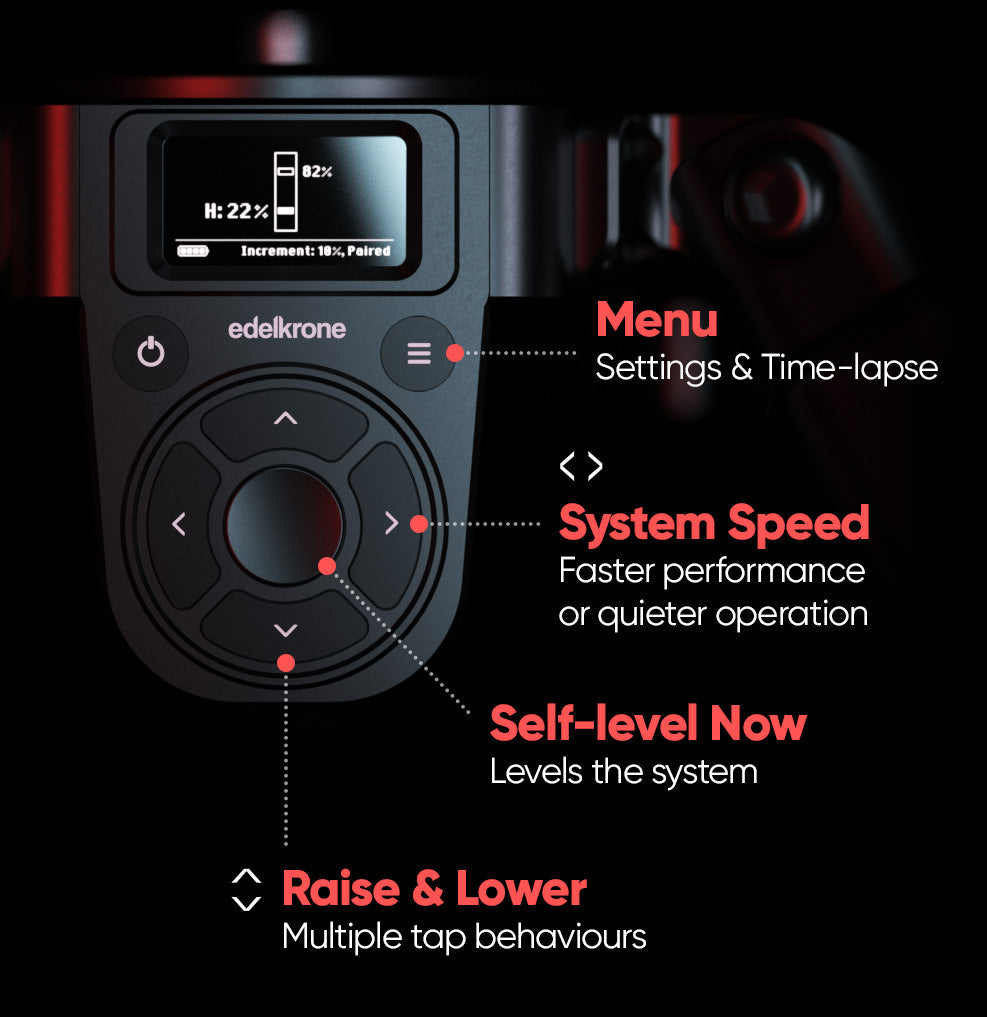

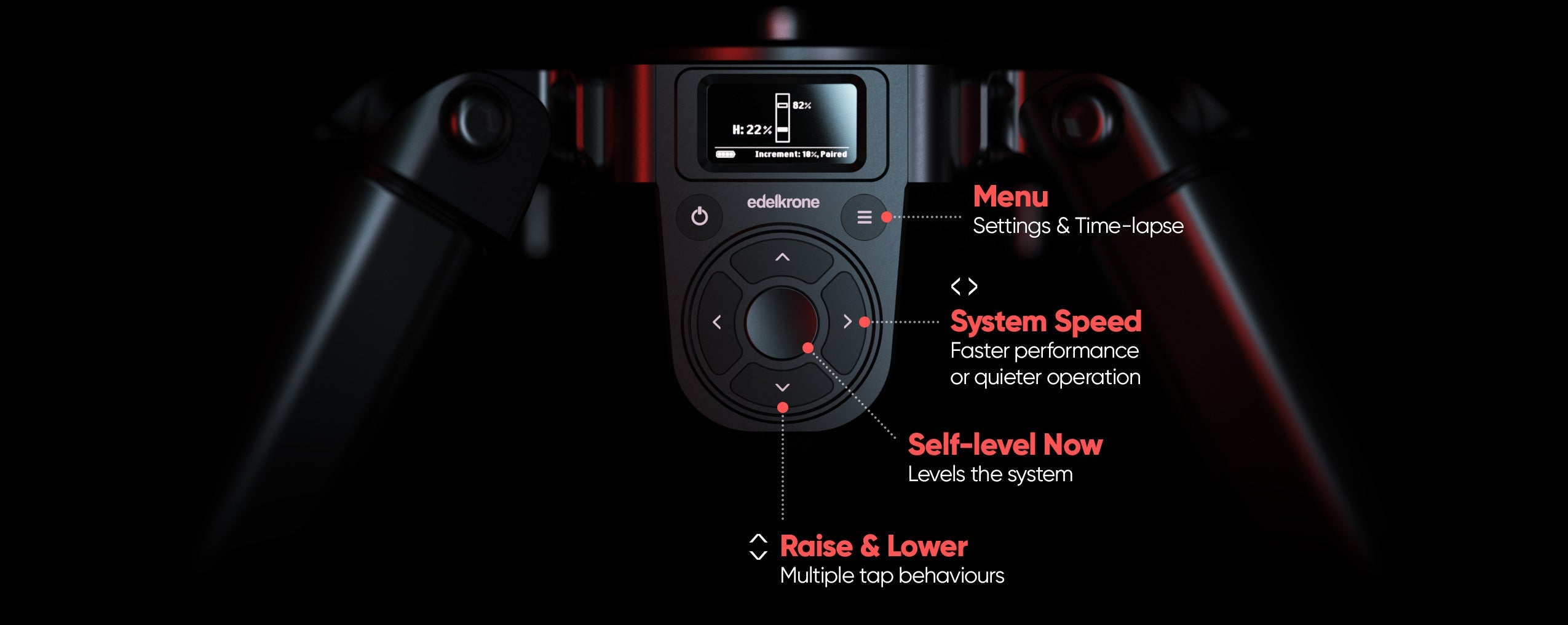

Simple Interface
Use left and right buttons to set your speed. Use up or down buttons to move your tripod vertically. Press center to trigger an auto-leveling. From the menu button access the Motion Timelapse and many more features to come.
*does not represent the actual speed of Tripod X
▼
Designed for Your Comfort
In Tripod X, we meticulously redesigned any interaction, ensuring they are extremely easy for you to handle. The lengths of the connecting rods, which determine the spacing between the legs, can be adjusted while standing up, without the need to crouch down. The experience of setting it up when you arrive at the shooting location, or packing it away when you're done, is completely fluid and hassle-free.
▼

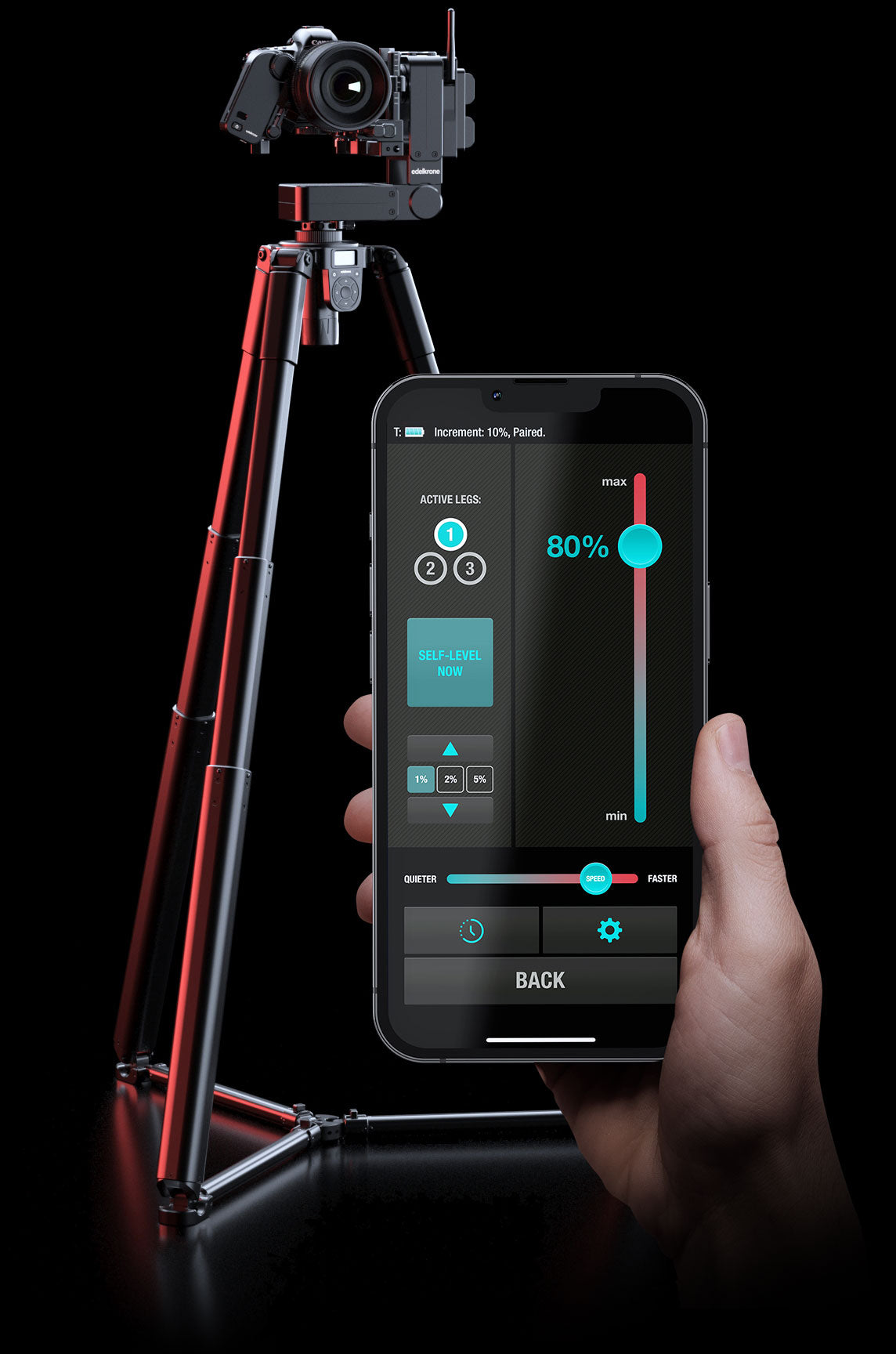

Remotely Control with the edelkrone App
(soon)
edelkrone App stands out as a comprehensive and intuitive control platform, designed to seamlessly and wirelessly control all edelkrone devices from both Apple and Android devices.

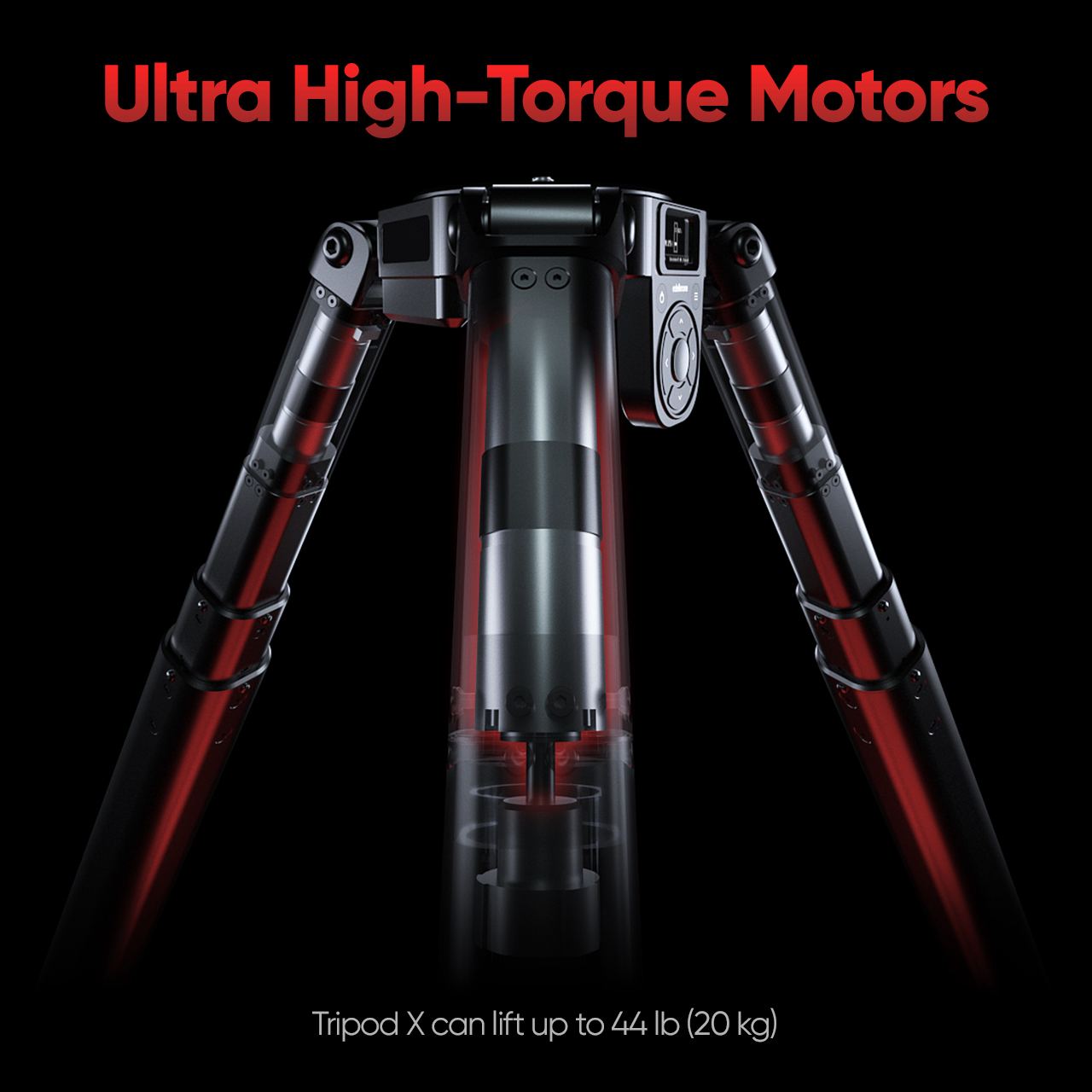

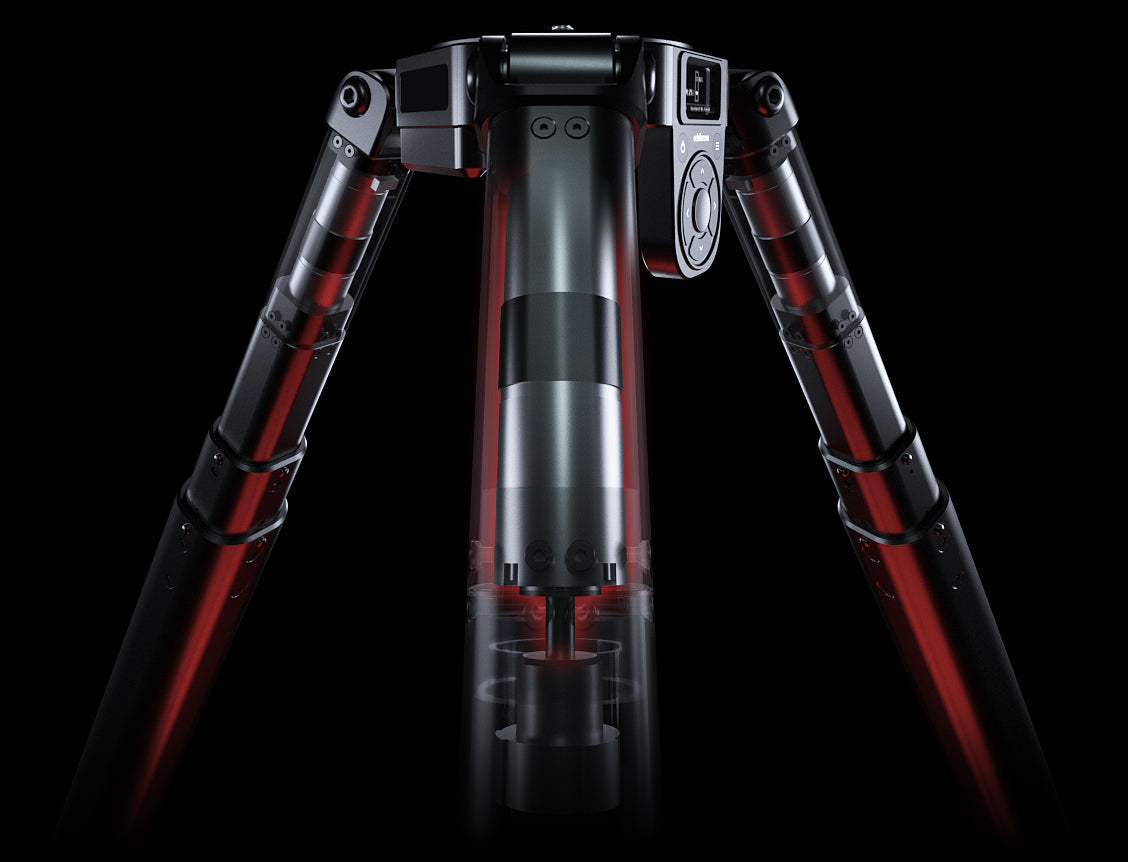

Ultra High-Torque Motors to Raise any Load
The Tripod X PRO, equipped with robust motors, boasts a lifting capacity of up to 44 lbs (20 kg), while the Tripod X RAPID can handle up to 17 lbs (8 kg). The specified capacities may be slightly lower when the spreaders are fully extended.

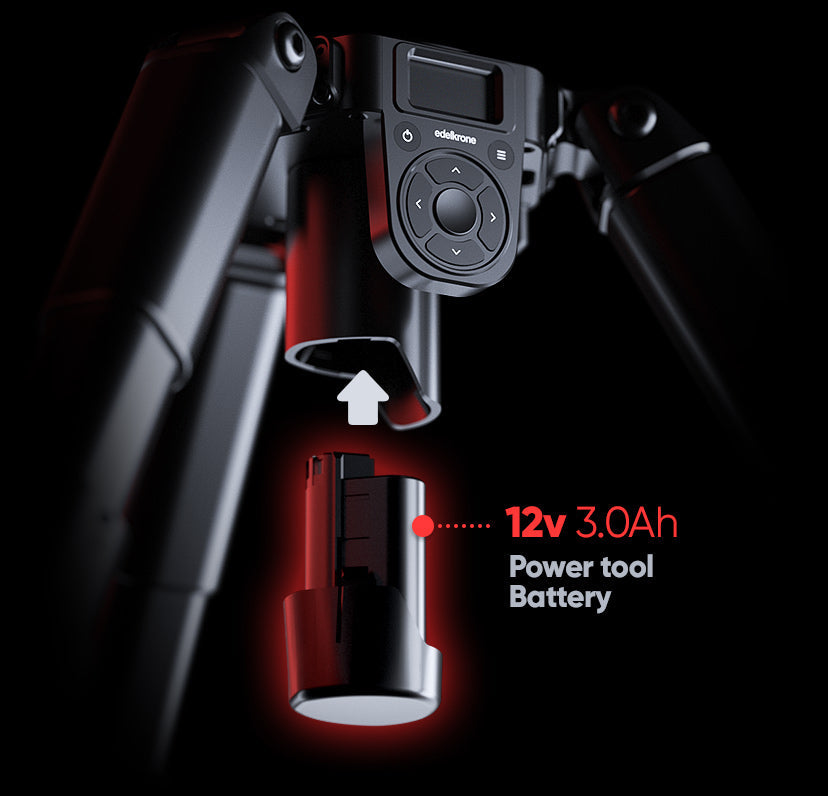

Single Battery: Weeks of Operation
Powered solely by a 12v 3.0Ah power tool battery, Tripod X delivers weeks of usage on a single charge. Battery and charger is included.
Perfect Foundation for edelkrone MoCo
Tripod X seamlessly integrates with the entire edelkrone motion control ecosystem, providing you the fastest and simplest workflow. You can control Tripod X directly within the edelkrone App, just like your other motion devices.
Disclaimer: Tripod X is not designed as a motion control device for controlling camera movements during shooting. Similar to any other tripod, it is solely designed as a tool for positioning your camera at the desired height in a balanced manner before shooting. The sole purpose of the motors is to facilitate the height adjustment and leveling processes effortlessly.
▼

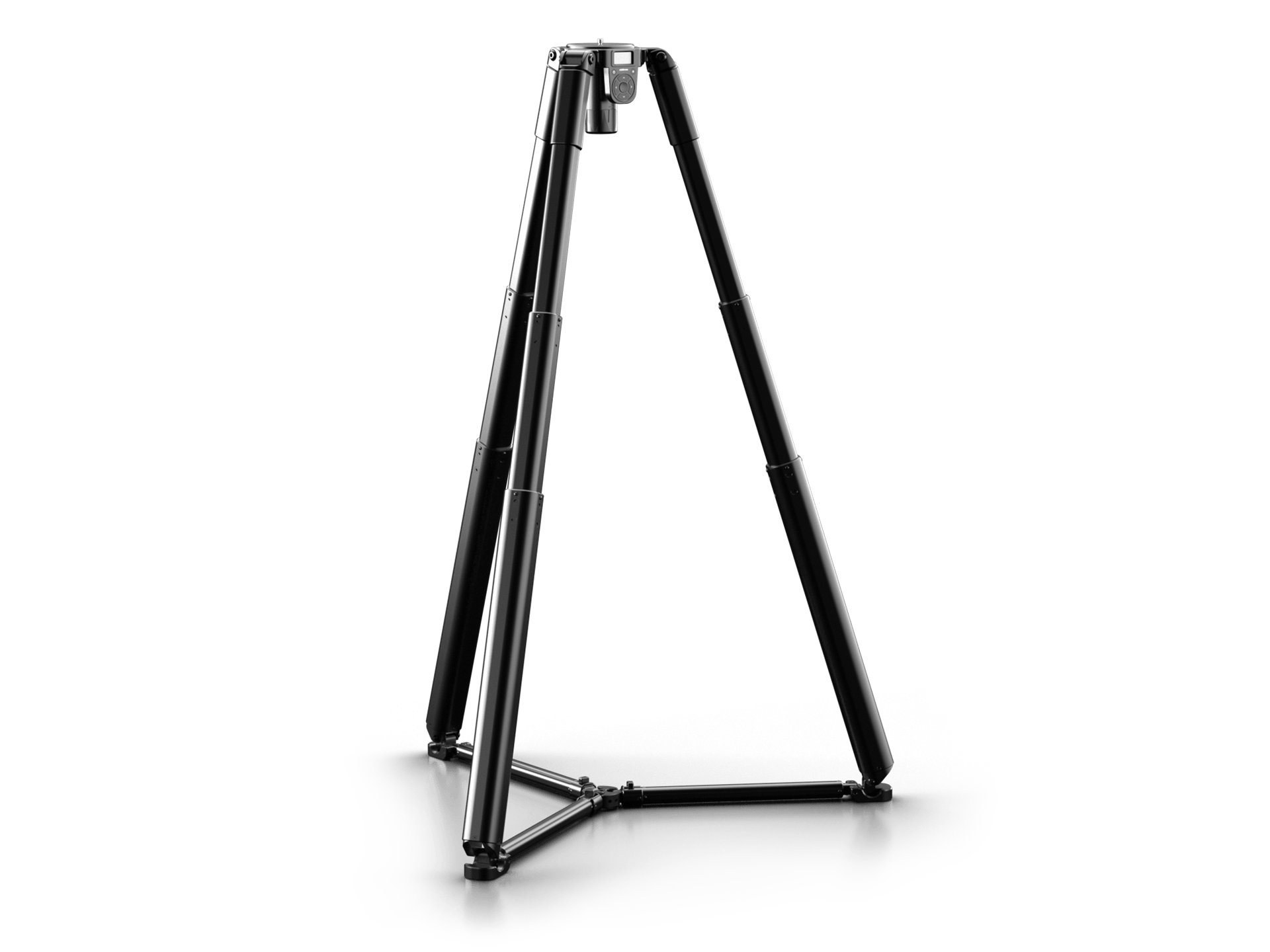

2 Models Based on Lifting Capacity & Speed
The 'RAPID' model is faster and more affordable, while the 'PRO' model can lift more weight. All other features remain the same.
Questions?
How fast is it?
With its speed of 120 cm/min for PRO and 300 cm/min for RAPID, Tripod X is the fastest moving motorized tripod in the world, and from our perspective, it's the fastest of any tripod. Let us explain why.
Imagine the struggle of adjusting a traditional tripod: the constant battle of loosening and tightening numerous clamps, the frustration that builds with each minute. After painstakingly adjusting the height, you're faced with the daunting task of re-leveling the camera, a process often marred by endless tweaking of leg lengths. Picture yourself contorting into uncomfortable positions, the strain on your back and legs as you attempt to achieve the perfect balance, especially when using a bowl head. This ordeal requires not just precision, but also a dance of tightening and loosening, often leaving you second-guessing your adjustments.
The true agony lies not just in the complexity of these adjustments but in the precious moments lost - moments that could be spent capturing the perfect shot. Each second spent wrestling with clamps and levels is a second stolen from your creativity. The physical toll is just as taxing, with your body bearing the brunt of non-ergonomic postures, leading to aches and strains that linger long after the shoot.
This is the harsh reality of using a regular tripod, a reality where convenience is sacrificed at the altar of manual labor. But with Tripod X, this narrative changes. You're liberated from the chains of cumbersome adjustments, from the physical and emotional toll of traditional tripods. Experience the freedom and ease that comes with Tripod X - where every adjustment is a breeze, saving you from the agony and letting you focus on what truly matters: your art.
How light is it?
We believe that Tripod X is the lightest tripod in the world, and here’s why we think so: While we understand that weight is a crucial factor in the global tripod market, we also believe that the introduction of a motorized tripod should change some paradigms. The weight of tripods is significant when carrying and setting them up. Since carrying a tripod can be done 99% of the time with wheeled vehicles, no matter its weight, it can be done in an extremely ergonomic way, and we don't think the weight significantly affects its portability. However, the weight becomes much more critical during setup and balancing. This is because users often engage in dangerously ergonomic postures and strains while setting up (raising and balancing) their tripods. Thus, even if a tripod is lightweight and was bought for that feature, its adjustment process can be very uncomfortable and difficult, leading users to avoid multiple angle adjustments and stick to single plan shots on set. They miss out on capturing creative angles due to the weight and difficulty of their tripods. Tripod X weighs 9 kg, but when raising and leveling it, you don't have to deal with this weight. The experience of adjusting its height, as light as a feather, opens up opportunities for you to explore new angles and capture more creative shots. That's why, in our view, Tripod X is the lightest tripod in the world.
How quiet is it?
Tripod X only uses its high-torque motors when adjusting height and leveling. So, like any other tripod, it is completely silent during shooting. Since tripods are always adjusted between takes, not during live recording, the noise level of Tripod X becomes a non-issue. Any noise it produces during adjustments — about 60 decibels (dB) at a meter's distance — can be further reduced by lowering the speed of Tripod X.
What happens when the battery of Tripod X runs low?
Tripod X is equipped with a battery life that ensures reliability, even on your busiest days. You can always monitor the battery level on the device's display, which gives you ample time to prepare for any low battery situations. When the battery drops to a critical level, Tripod X emits audible warnings during height adjustments. At this stage, supporting the weight during height adjustments can help conserve the remaining battery life. If the battery level falls to a critical point, Tripod X disables the height adjustment feature and reserves the remaining power for shutting down, ensuring you can close Tripod X without any issues.
If you try setting up a timelapse when the battery is nearing its critical level, Tripod X will provide a warning. Should you continue with the timelapse under low battery conditions and the battery falls to a critical level mid-process, Tripod X will save the current state of the timelapse and shut down. You can then resume the timelapse from the saved point once the battery is replaced.
Lifting and Leveling Capacity
When the spreaders are fully extended and the tripod is lowered to its minimum height, its lifting and leveling capacity may decrease, possibly requiring manual support. The specified capacity of 20kg (for PRO) and 8kg (for RAPID) applies when the spreaders are not extended.
Tech specs
- Height: 71 cm (27.95 inches)
- Diameter: 21 cm (8.27 inches)
- Weight: 9 kg (19.84 pounds)
FOR PRO
- Lifting Capacity: 20 kg (44.09 pounds)
- Carrying Capacity: 30 kg (66.14 pounds)
FOR RAPID
- Lifting Capacity: 8 kg (17.6 pounds)
- Carrying Capacity: 30 kg (66.14 pounds)
CNC Machined Aluminum Body and Legs.
High Torque DC Motors
FOR PRO 120 cm/min
FOR RAPID 300 cm/min
60 decibels from 1 meter away at max speed max load
- Maximum Height: 148 cm (58.27 inches)

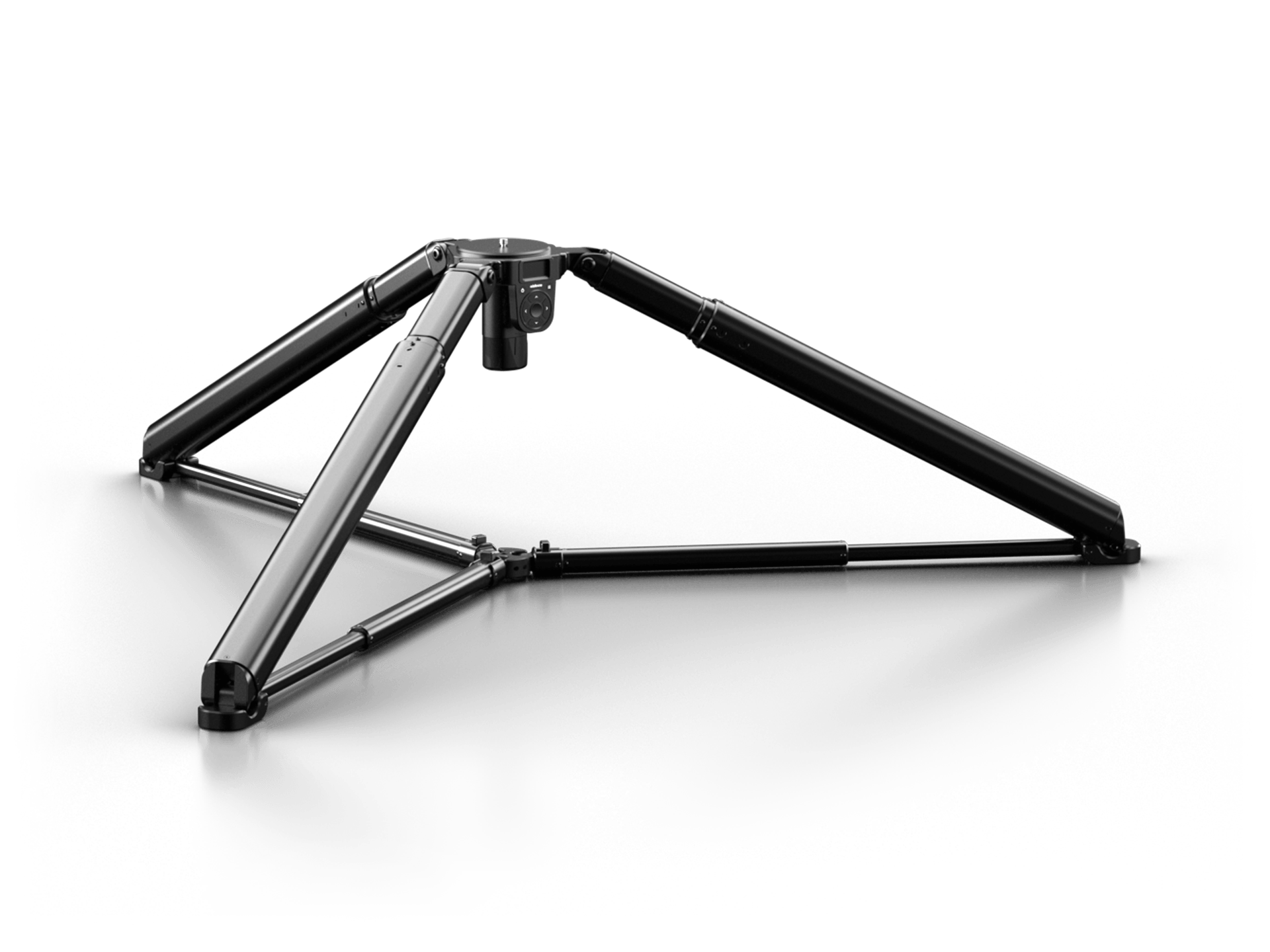

- Minimum Height (with no camera head attached): 34 cm (13.39 inches)
Press-n-release smart spreader that can be pressed with foot.
12V min 3Ah GBA type power tool battery
(BOSCH 12V 3Ah GBA battery and charger included)
Average of 300 adjustments on a single charge
Can only be powered from battery port (dummy battery for GBA battery port coming soon)
Can be fully controlled from the on device buttons
Can be controlled from edelkrone App (iOS / Android)
10 cm (3.94 inches)
3/8" threaded screw on top for camera head attachment.
Indoor use highly suggested. Mild climate outdoor usage is also possible.
Sandy environments, such as beaches or deserts, should be avoided. It is not water-resistant and should not be used in the rain or on wet surfaces.
